FFL — FIFO Load

---

Description

FFL (FIFO Load) pushes a value onto the end of a first-in, first-out queue each time its rung goes from false to true. The queue is an array tag; the control tag’s position counts how many entries it holds. FFL always pairs with an FFU (FIFO Unload) on the same control tag and array, which takes the oldest entry off the front. Use the pair to buffer part numbers, job codes or readings between a station that produces them and a station that consumes them at a different rate. Do not use a FIFO for the most recent value; LFL/LFU give last-in, first-out.

---

Operands

Operand	Type	Format	Valid Range	Required	Description
Control	CONTROL tag	Tag or Tag[n]	Shared with exactly one FFU	Yes	Holds LEN, POS and the status bits.
Source	INT or DINT tag, member, element or literal	Tag, 7	Any	Yes	The value pushed.
File	INT or DINT array tag	Tag	At least Length + 1 elements	Yes	The queue. Entries occupy elements 0 to POS − 1.
Length	Whole number	4	1 to array size − 1	Yes	Queue capacity.
Position	Whole number	0	0 to Length	No	Entries at power-up; normally 0.

Give the FFU the same Control, File and Length.

---

Scan Behavior

Prescan

LEN is loaded from Length and POS from Position. EM is set once the pair has run its first scan with POS at 0.

Rung-condition-in is false

EN is cleared. Nothing is pushed.

Rung-condition-in is true

On the scan the rung turns true, if POS is below LEN the Source is written to File[POS] and POS increments. DN is set while POS equals LEN, so a push against a full queue is ignored. EM is set while POS is 0.

Postscan

Nothing.

Condition	EN	DN	EM	POS	File
Power-up	0	0	1	0	holds
Rung false	0	holds	holds	holds	holds
False → true, POS < LEN	1	POS = LEN after	0	+1	File[POS] = Source
False → true, POS = LEN	1	1	0	holds	holds
RES on the control	0	0	0	0	holds

---

Member Bits

Bit	Mnemonic	Data type	Set by	Cleared by	Operation description
Enable	.EN	BOOL	The FFL rung being true	The FFL rung being false, or RES	Mirrors the load rung, and is the load half’s edge memory.
Enable unload	.EU	BOOL	The FFU rung being true	The FFU rung being false, or RES	Mirrors the unload rung, and is the unload half’s edge memory. Two bits, so the two rungs never disturb each other’s edge.
Done	.DN	BOOL	POS reaching LEN	An unload, or RES	The queue is full; further loads are ignored.
Empty	.EM	BOOL	POS at 0 after a load or unload	The first load, or RES	The queue is empty; an unload does nothing.
Error	.ER	BOOL	Never	RES	Reserved. Bad operands are refused at validation.
Unload	.UL	BOOL	Never	RES	Not used by FIFO.
Inhibit	.IN	BOOL	Never	RES	Reserved.
Found	.FD	BOOL	Never	RES	Not used by FIFO.
Length	.LEN	INT	Length at power-up	Never (RES preserves it)	Queue capacity.
Position	.POS	INT	Each load (+1) and unload (−1)	RES (to 0)	Number of entries in the queue.

---

Example

Scenario: A labeller hands job codes to a downstream packer. Codes arrive in bursts and are worked off one at a time, so they queue.

Tags:

• Load_Job — New job available, BOOL
• New_Job — Job code from the labeller, INT
• Jobs — The queue, INT[8]
• Jobs_Ctl — Control, CONTROL, Length 4
• Unload_Job — Packer ready, BOOL
• Next_Job — Job code for the packer, INT

Rungs 1 and 2:

—] [Load_Job———[FFL Jobs_Ctl  New_Job  Jobs  4]———
—] [Unload_Job———[FFU Jobs_Ctl  Jobs  Next_Job  4]———

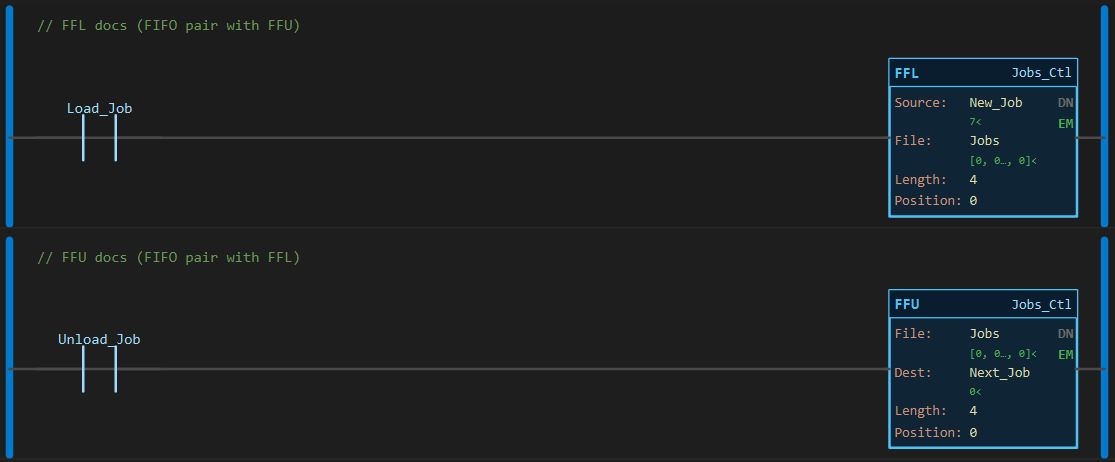

Scan 1 — both rungs false. New_Job reads 7. Position 0, EM lit on both blocks, Next_Job 0.

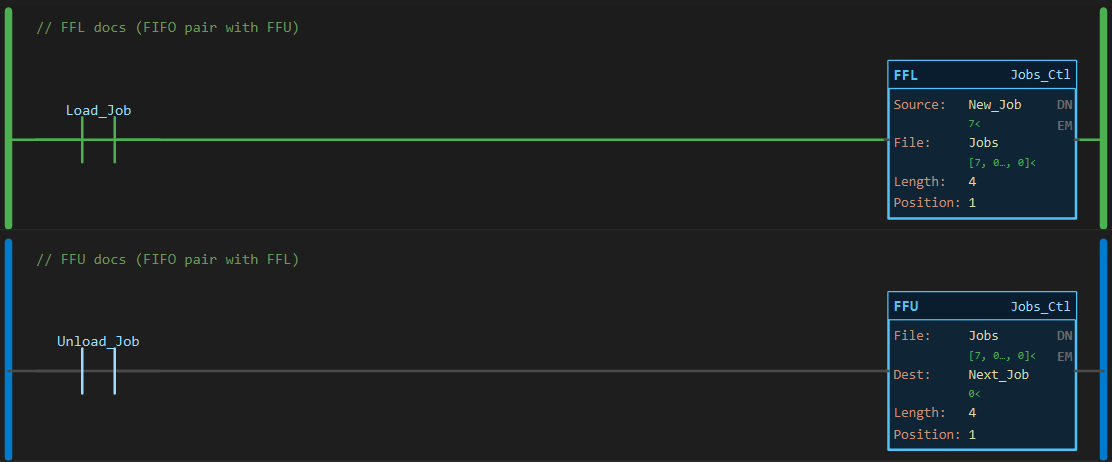

Scan 2 — Load_Job = 1. The code is pushed: Jobs[0] becomes 7, Position 1, EM goes dark.

Scan 3 — Unload_Job = 1. The FFU takes the oldest entry: Next_Job reads 7, Position back to 0, EM lit again.

Four loads without an unload fill the queue and light DN; a fifth is ignored until the packer takes one.

---

Control Tag Errors and Troubleshooting

Error definitions

.ER cause	Condition that sets it	.POS / status value	Meaning
None	.ER is never set by LadderIDE	—	A File that is not an INT/DINT array, a Length of array size or more, or a third instruction on the control tag is refused at validation.

Troubleshooting hints

Symptom: Loads are lost. Likely cause: The queue is full; .DN is set and a load against a full queue is ignored. Fix: Increase Length (and the array), or block the producer with XIO Jobs_Ctl.DN.

Symptom: .POS climbs and never falls. Likely cause: The FFU rung never sees an edge, or it uses a different control tag. Fix: Check that both instructions name the same control tag and array, and that the unload rung goes false between unloads.

Symptom: .EM is clear right after a RES although the queue is empty. Likely cause: RES clears every bit including EM; EM is recomputed on the next load or unload edge. Fix: Test EQU Jobs_Ctl.POS 0 if you need “empty” on the scan after a reset.

---

See Also

• FFU — FIFO Unload (the other half of the pair)
• LFL — LIFO Load (a stack instead of a queue)
• RES — Reset (empty the queue)
• Shift/Sequencer Instructions — Category index

---

Notes

Array size. Length may be at most one less than the array size, the same rule as the sequencers, so a queue of 4 needs INT[5] or larger.

Old entries linger. An unload shifts the queue down but does not clear the vacated element. Only elements below POS are meaningful.

The block colours neutral. Watch the rung wire, the Position row and the DN/EM indicators.
